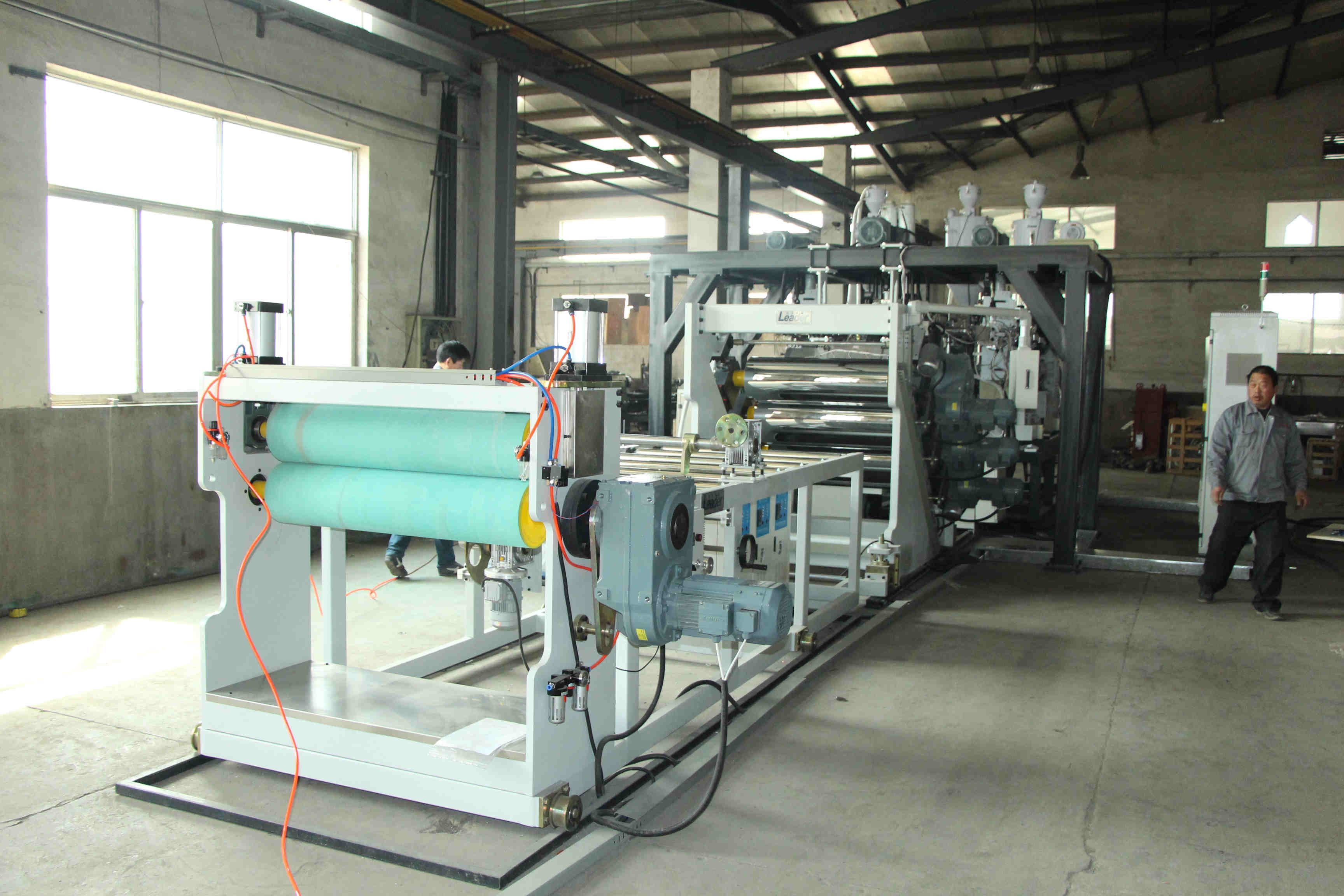

| PAR T1 THIS LINE CONSISTS OF (COMPULSORY) |
| 1 | Automatic spring feeding machine | 1 set |
| 2 | Conical twin screw extruder | 1 set |
| 3 | T-type /hanger type die head (JC-Times brand) | 1 set |
| 4 | Three Roller Calendars (alloy steel material ) | 1 set |
| 5 | Rollers thermoforming machine | 1 set |
| 6 | Cooling frame and edge cutting unit | 1 set |
| 7 | Haul off machine | 1 set |
| 8 | Plastic cutting machine-Guillotine | 1 set |
| 9 | Twin position winder | 1 set |
| 10 | Spare parts | 1 set |
| |
| PART 2 ACCESSORY MACHINE PARTS (OPTIONAL) |
| 11 | High speed hot and cold mixer | 1 set |
| 12 | Plastic crusher | 1 set |
| 13 | Plastic pulverizer | 1 set |
| 14 | Air compressor | 1 set |
| 15 | Industrial water chiller | 1 set |
| |
| PART 3 SHEET SPECIFICATIONS |
| 1 | Sheet width | 500-1500mm |
| 2 | Sheet thickness | 0.5-2mm |
| 3 | Type | Rigid pvc, untransparent |
| |
| PART 4 SHEET APPLICATIONS |
| 1 | Sandwich panel, furniture edge band, thermoforming packing |
| |
| PART 5 PAYMENT, DELIVERY AND AFTER SALE SERVICES |
| 1 | Payment terms | 40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable |
| 2 | Delivery time | 60 days after receipt of prepayment |
| 3 | Packing method | Wooden cases/pallets with stretching films |
| 4 | Guaranteed time | 18 months for mechanical parts, 12 months for electrical parts |
| 5 | After sale service | Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable |
OTHER KINDS OF PLASTIC SHEETS/BOARDS EXTRUSION LINE:
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.15-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 350-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.
4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, bathtube, etc.
5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 500kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.
6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.
7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.
8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 300kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.
9. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.
