THIS HDPE Geomembrane production machineCONSISTS OF:
1) XAL-8002G Vacuum Feeding Machine 1 set
2) Dryer Hopper 500kg capacity 1 set
3) SJ-120/33 High efficiency single screw extruder with DC motor 160kw, 1 set
4) Hydraulic Exchaning unit 1 set
5) T-type die head, JC-times brand 1 set
6) Three Roller calendar with diameter 450mm 1 set
7) Temperature controller for calendaring system 1 set
8) Cooling frame and edge trimming unit 1 set
9) Haul off machine 1 set
10) Plastic cutting machine -guillotine 1 set
11) Pneumatic stacker 1 set
12) spare parts: 1set
SHEET SPECIFICATIONS:
Product specification: Sheet width: 1000-8000mm, sheet thickness: 0.5-3mm
Main Technical Parameters:
HDPE Geomembrane production machine, HDPE Geomembrane extrusion machine, HDPE Geomembrane making machine, HDPE Geomembrane production line |
| 1 | Single screw extruder | This extruder can be vacuum-exhausted type according to the different materials.
The screw and barrel are specially designed according to different materials.
Main electrical parts adopts ABB,Omron,RKC,Schneider, Siemens, Eurotherm, high precision.
Extruder can be Siemens PLC touch screen controlled. |

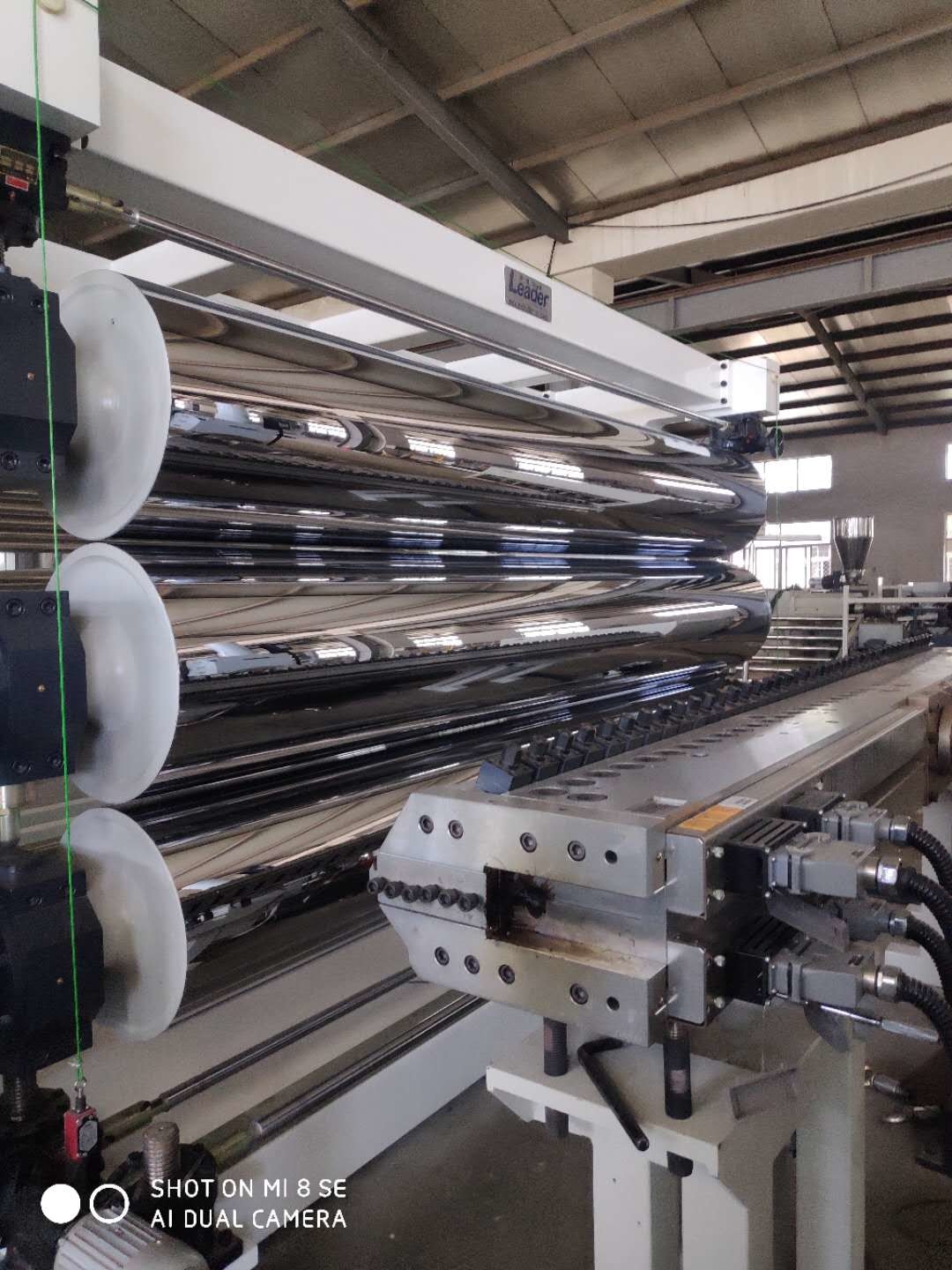

| 1.1 | T-tye die head and hydraulic exchanging units | Brand: JC-times brand
Material: 5CrNiMo, high quality die steel
hydraulic exchanging unit is single plate, double position, non-stop, no leakage, stable performance. |
| 2 |
Three roller calendar
| This calandering system can be vertical, oblique, horizontal according to the mateial attributes.
With rollers thermocontoling machine installed.
The space between three rollers can be adjsuted manually and automatically. |
| 3 |
Cooling rollers with edge trimming units | cooling rollers can be 4m, 6m, 8m,10m according to products specification and customers' need.
edge cutting unit and slitting device can be installed. |
| 4 |
Haull off Machine | 2 pics of NBR rubber rollers with pneumatic control |
| 5 |
Cutting machine | Knife cutting machine-guillotine: suitable for under 10mm thickness sheet. It can be controlled by motor or hydraulic cutting |
| 6 |
Twin position coiler | it is suitable for the thin sheet, like 0.2-2mm |
| 7 | Electrical cabinet: | ABB inverter, Shneider contator, RKC thermocontroller,
Siemens PLC, and etc. |
Main applications
1, HDPE geomembrane for environmental protection, sanitation: such as landfills, sewage treatment plants, power plants regulation pool, industrial, hospital and solid waste;
2, LDPE impervious membrane suitable for water projects: such as rivers, lakes and reservoirs dam seepage, sealing, reinforcement, drainage of seepage, vertical heart wall, slope protection, etc;
3, HDPE impermeable membrane in municipal works: subway, underground engineering building, green roofs, roof garden, sewage pipe seepage;
4, Polyethylene impermeable membrane suitable garden: artificial lakes, rivers, reservoirs, golf course pond bottom, slope, green lawn waterproof, etc;
5, High-density polyethylene geomembrane for petrochemicals: chemical plants, refineries, tank seepage, chemical reaction tank, sedimentation tank lining, secondary lining, etc;
6, Polyethylene geomembrane for mining: washing pools, heap leaching pool, the ash field, dissolving tanks, sedimentation tanks, yard, tailings seepage and other backing;
7, low density polyethylene film suitable transportation facilities: road base reinforcement, culverts impermeable;
8, LDPE impervious membrane suitable for agriculture: reservoirs, water tanks, water storage pond, irrigation systems seepage;
9, HDPE film suitable aquaculture: intensive, factory farming pond, ponds, lined ponds, sea cucumber circle slope, etc;
10, High-density polyethylene impermeable membrane suitable Salt: salt crystallization pool, brine pool thatch cover, salt film, plastic thatch film Salt.
